Tiler
Starting from a previous project I made a new tool to cut pictures into tiles and automatically reassemble them following a set of rules.

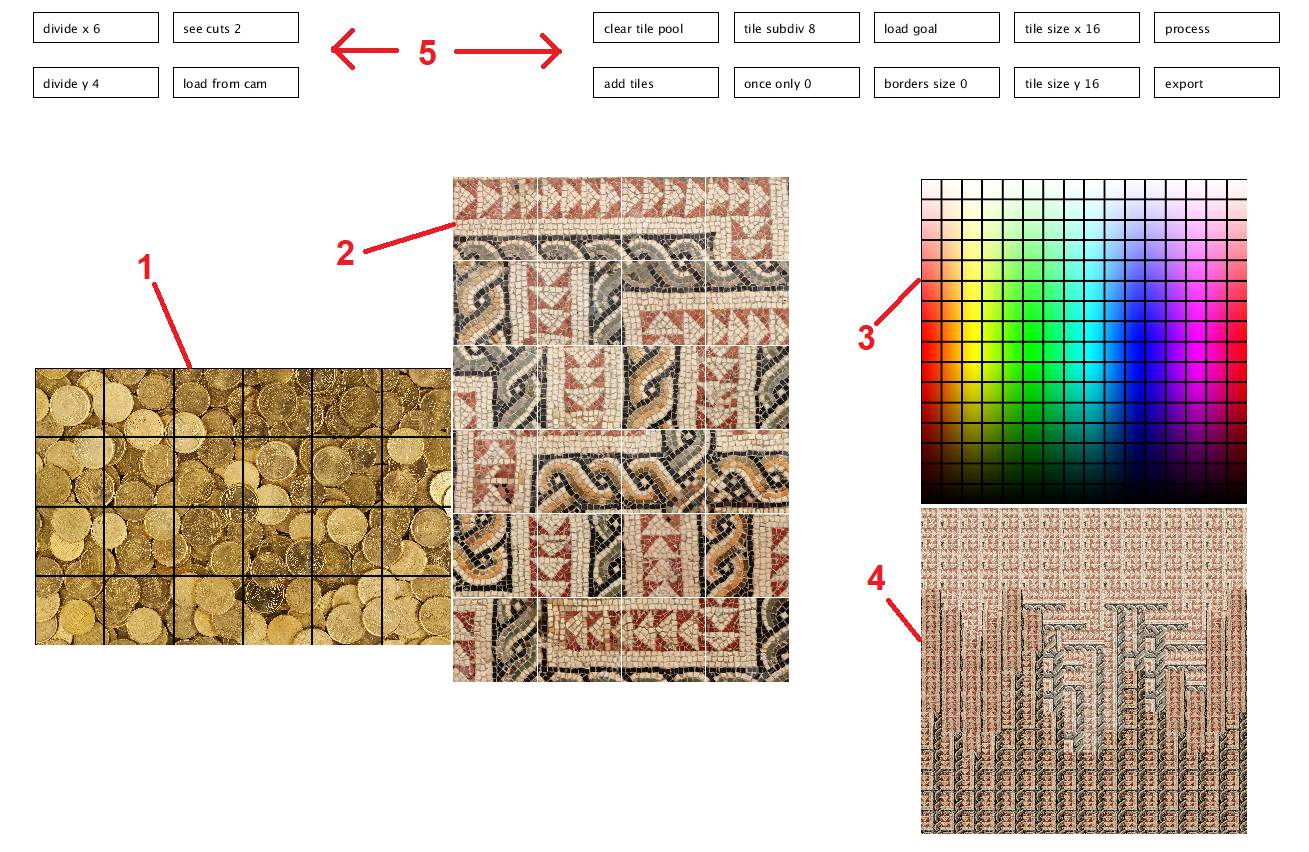

rough documentation :
(1) loading zone
(2) tiles
(3) goal
(4) result
(5) buttons
left click on a button increases values
right click on a button decreases values
shift + clicks shift values by greater gaps
ctrl + clicks modifies x and y to keep a square ratio
- dragging and dropping a pictures loads it into the loading zone (1)
- "add tiles" cuts the loading zone (1) picture and adds the tiles to the pool according to "divide x" and "divide y" values
- "load goal" loads the picture in the loading zone (1) to the goal (3) to reproduce
- "tile size x" and "tile size y" parameters define the size and ratio of the final tiles to match, tiles will be stretched to fit with them
- "process" will use the tiles from the pool (2) to reconstruct the goal (3), and display it as the result (4) ; some buttons trigger this action automatically
- "once only" if set to 1 will use every available tile once before reusing them
- "tile subdiv" defines if only an average color (if set to 1) or several subdivisions of tiles are used during the matching process
press tab to display the result as a bigger picture
click "export" to generate a png in the data folder
github : https://github.com/Morusque/tiler
zip (including some assets) : zip
compiled versions (without java) : zip
I used this tool in one of the graphimix workshops.
Here are a few pictures produced with the students during that session :
